Stainless steel horizontal centrifugal pump with mechanical seal SHX500-SS from Hendor
Series SHX

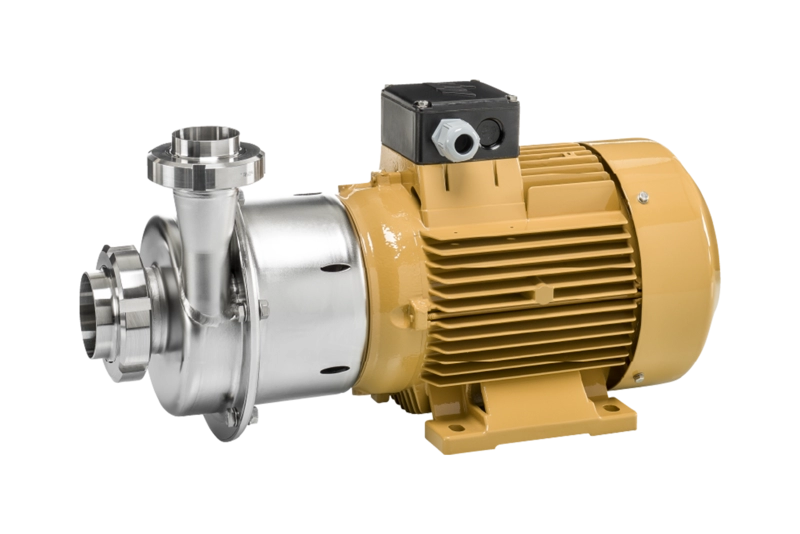

Horizontal pump SHX500-SS

2 - 50 m3/h

33 - 833 l/min


The SS horizontal pump SHX500 is a mechanical seal pump, robustly built from high wall thickness stainless steel AISI 316L and equipped with a durable single seal. The SHX500-SS combines optimized hydraulic efficiency with a robust, compact, and reliable construction. This results in maximum installation uptime and a long service life, providing best in class performance, technically and economically. The horizontal pump SHX500-SS is designed and manufactured for transfer and circulation of chemicals, typically for high temperature, high alkaline applications. The 3-piece union, makes it easy to build-in and -out, especially for OEM configurations.

> Discover the benefits of stainless steel versus thermoplastic.

Request a quote

specs

Metric
  • Flow: 50000 l/h
  • Head: 20 m
  • Electric motor: 4,0 kW
  • Weight: 39 kg
Imperial
  • Flow: 3155 gpm
  • Head: 66 ft
  • Material: SS
  • Electric motor: 6 hp
  • Weight: 86 lbs

downloads

Leaflet SHX.pdf
Leaflet SHX DE.pdf
