Series D90

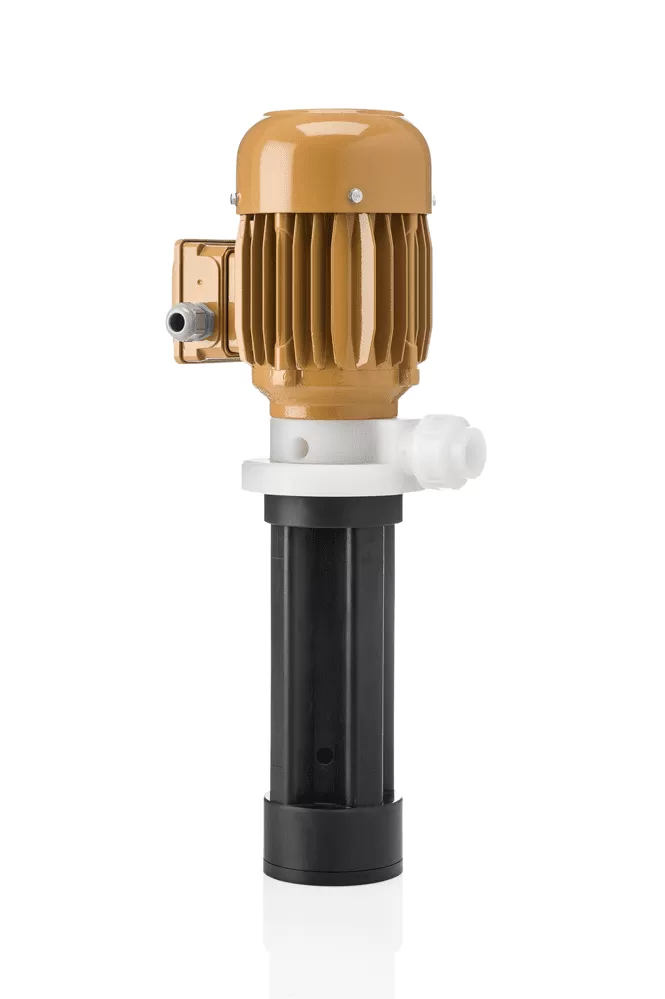

Vertical pump D93-PVDF
600 - 3300 l/h
10 - 55 l/min
The PVDF vertical pump D93 is a vertical single stage centrifugal immersion pump, sealless, and dry-run safe, for non-pressurized tank application. The D93-PVDF vertical pump combines optimized hydraulic efficiency with a robust, compact, and reliable construction, resulting in maximum installation uptime, and a long service life.
specs
Metric
- Flow: 3300 l/h
- Head: 6 m
- Immersion depth: 270 mm
- Electric motor: 0,18 kW
- Weight: 8 kg
Imperial
- Flow: 208 gpm
- Head: 20 ft
- Material: PVDF
- Immersion depth: 11 inch
- Electric motor: 1/4 hp
- Weight: 18 lbs
